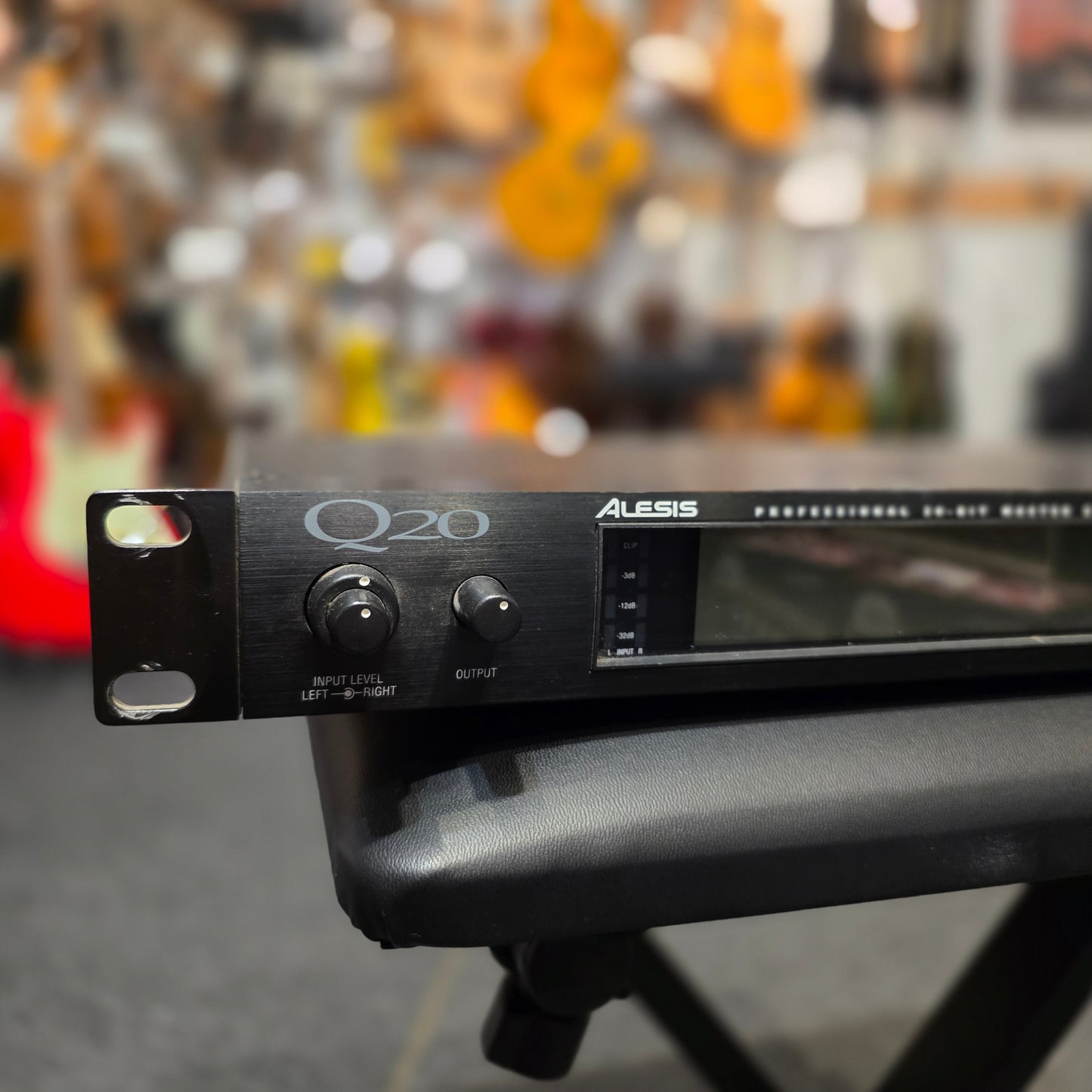

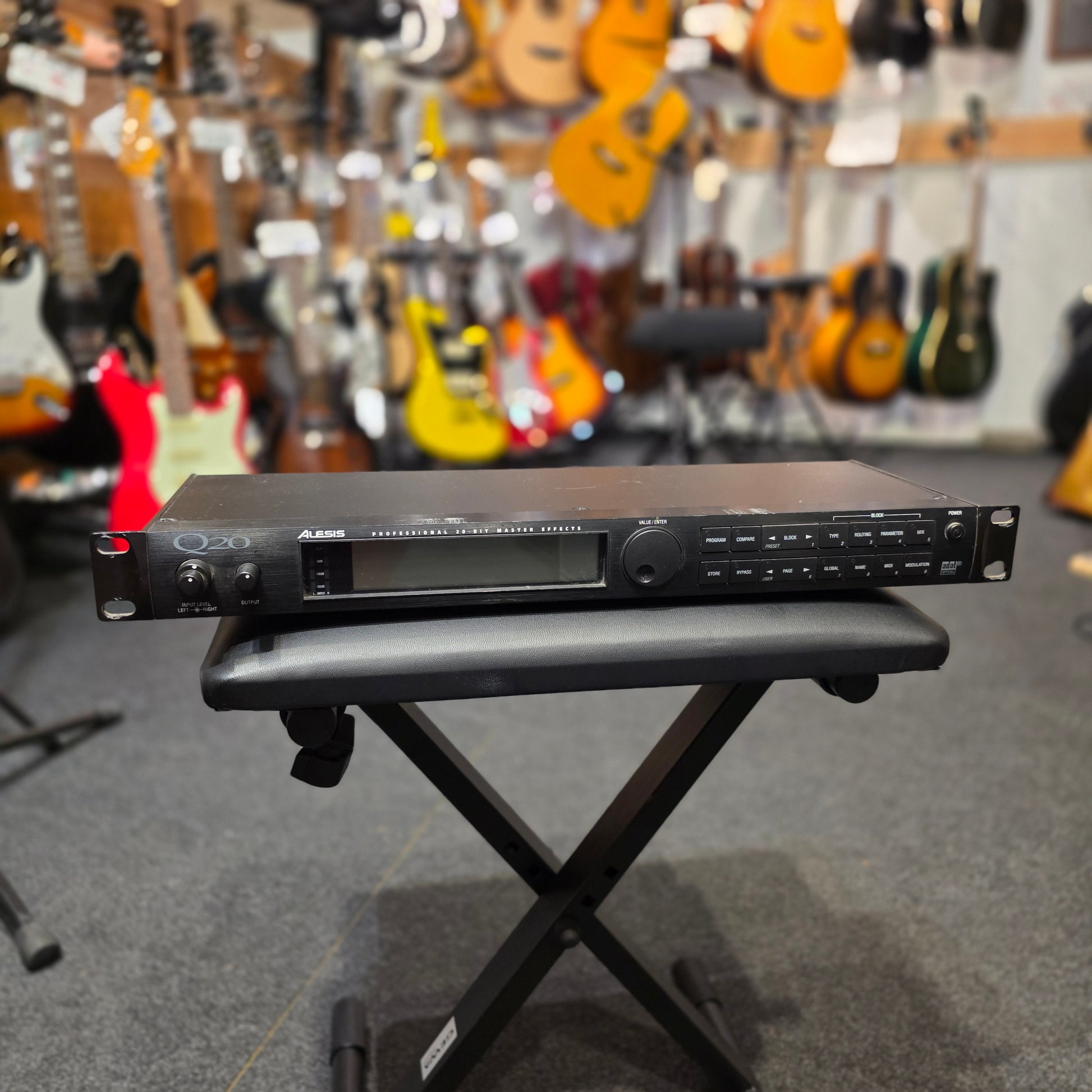

BRUGT: Alesis Quadraverb Q20 Professionel 20-bit stereo master multi-effektenhed

BRUGT: Alesis Quadraverb Q20 Professionel 20-bit stereo master multi-effektenhed

OBS! Tekst fra nettet, Kan indeholde fejl:

Quadraverb Q20 fra 1991

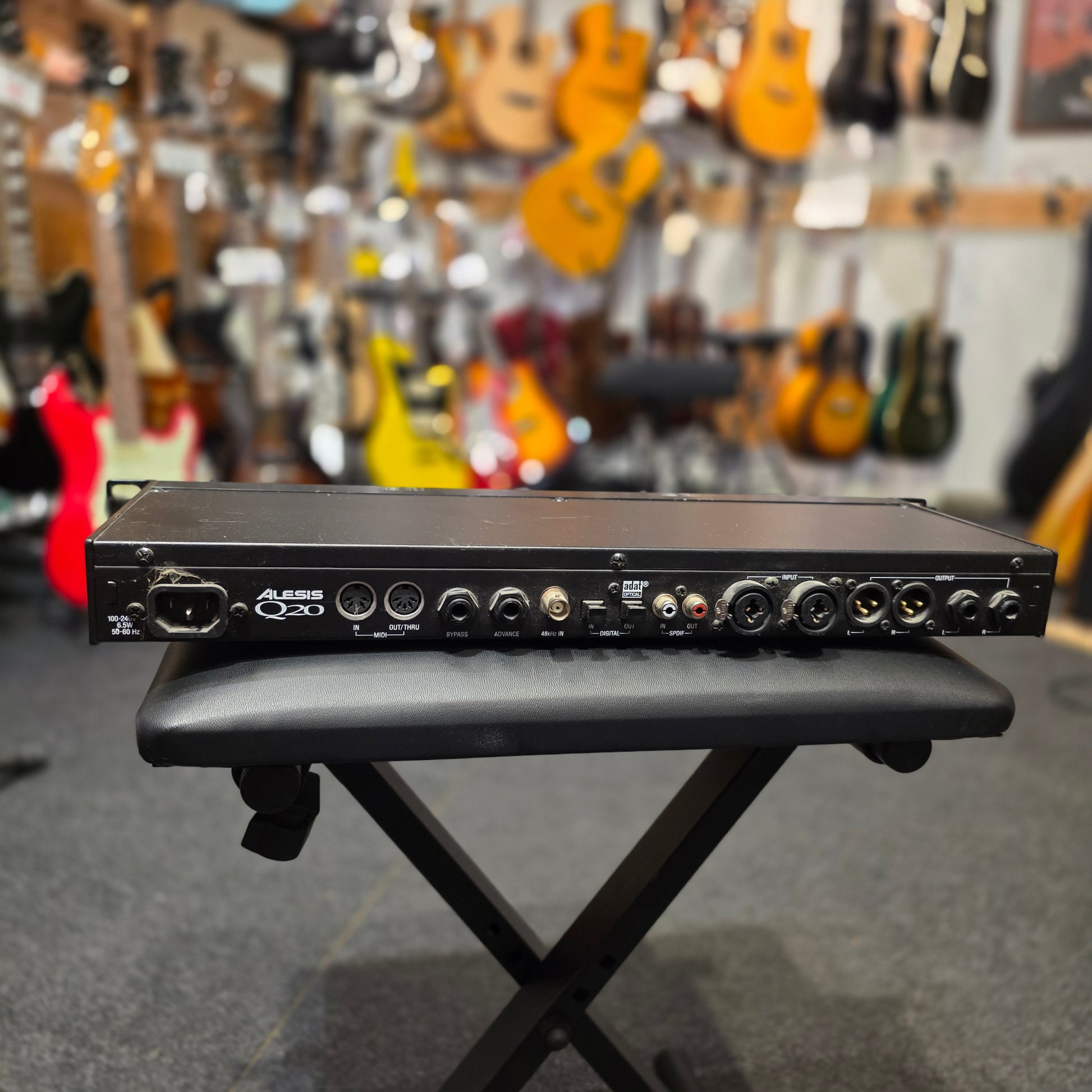

"The Q20 is essentially a Q2 fitted with 20-bit converters, but it’s also been improved in other areas, not least in having twice as many user memories. Gone is the annoying external power supply, and in addition to the ADAT interface, there’s also S/PDIF in and out on standard phonos. The input sockets are now combi XLRs that can accept balanced XLRs or regular quarter-inch balanced/unbalanced jacks, and the outputs are available on separate balanced XLRs or balanced jacks. There’s also a 48kHz clock input, footswitch jacks for bypass and patch advance, and MIDI sockets for In and Out/Thru.

The effects are generated by the same proprietary 24-bit Alesis DSP chip as was used in the Q2 which, depending on the complexity of the effects chosen, can generate up to eight programmable effects blocks at once, though in most cases, only four or five typical effects can be combined before the DSP limit is reached. You can even use all the DSP power on one super reverb."

• Frequency Response: 20Hz to 20kHz +/‑0.2dB.
• Dynamic Range: >92 dB 20Hz‑22 kHz.
• Distortion (THD+N): <0.005% @1kHz.
• Crosstalk: >88dB below full scale.
• Sampling Rate: 48kHz (variable from 40.4kHz to 50.8kHz under external control).
• Analogue Inputs: Stereo (L/R) Combination XLR/quarter‑inch TRS jacks, balanced/unbalanced.
• Analogue Outputs: Stereo (L/R) XLR, Stereo quarter‑inch jacks, balanced/unbalanced.
• Digital Conversion: 20‑bit 256 times oversampling A‑D; 20‑bit, 256 times oversampling D‑A.
• Digital Input/Output: ADAT Multi‑channel Optical Digital Interface, S/PDIF Digital Interface, BNC jack for 48kHz word clock connection.
• Factory Preset Programs (ROM): 100.
• User Programs (RAM): 200.
• Dimensions (WxHxD): 19 x 1.75 x 7 (inches). (483mm x 45mm x 178mm).
• Weight: 4.25 lbs. (1.9kg).
