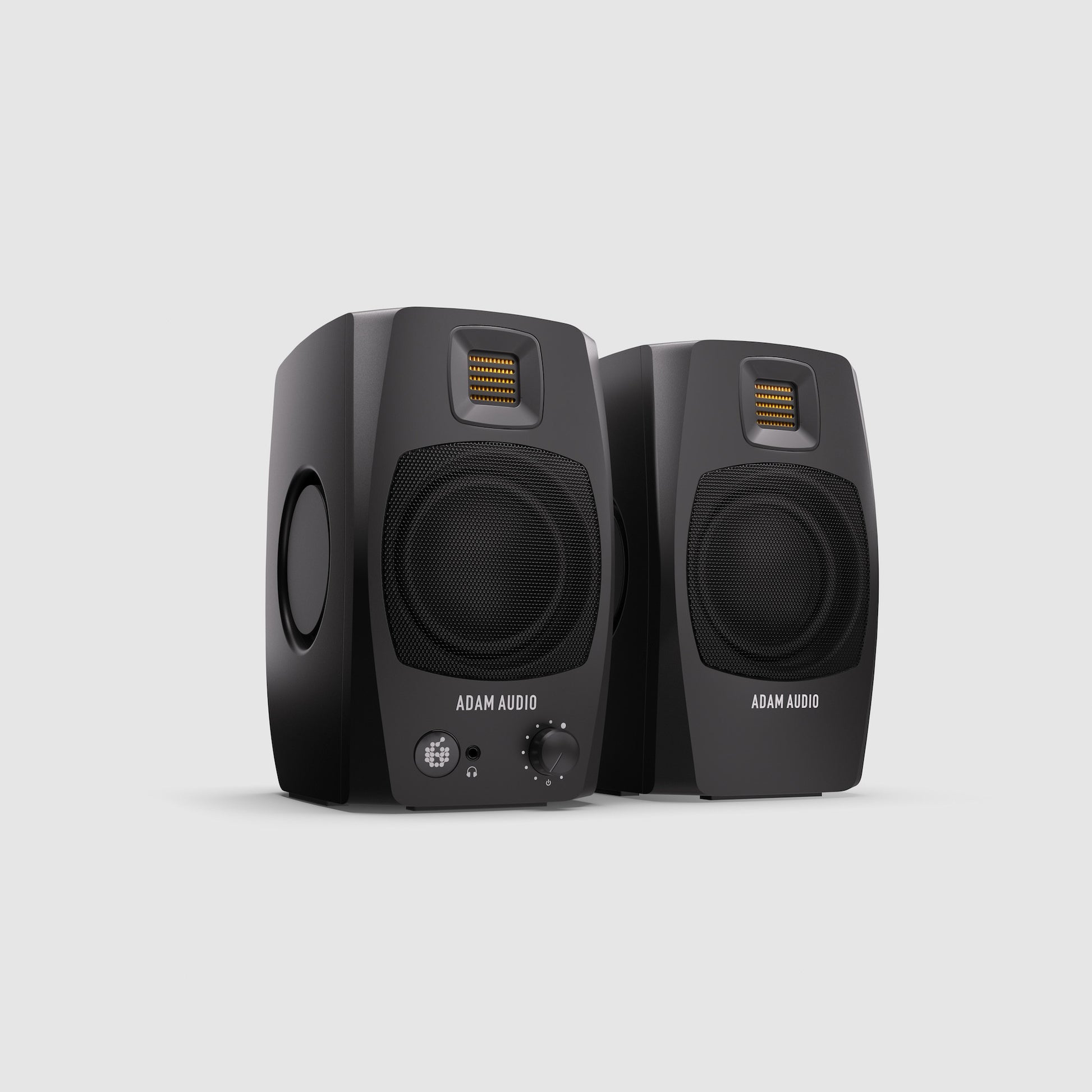

Adam Audio D3V active desktop speakers

Incredible sound quality for music and audio enthusiasts

Total power (peak): 240 W
USB-C & balanced analog inputs
3-way DSP room adaptation
1.5" handmade D-ART precision tweeters
3.5" aluminum woofers

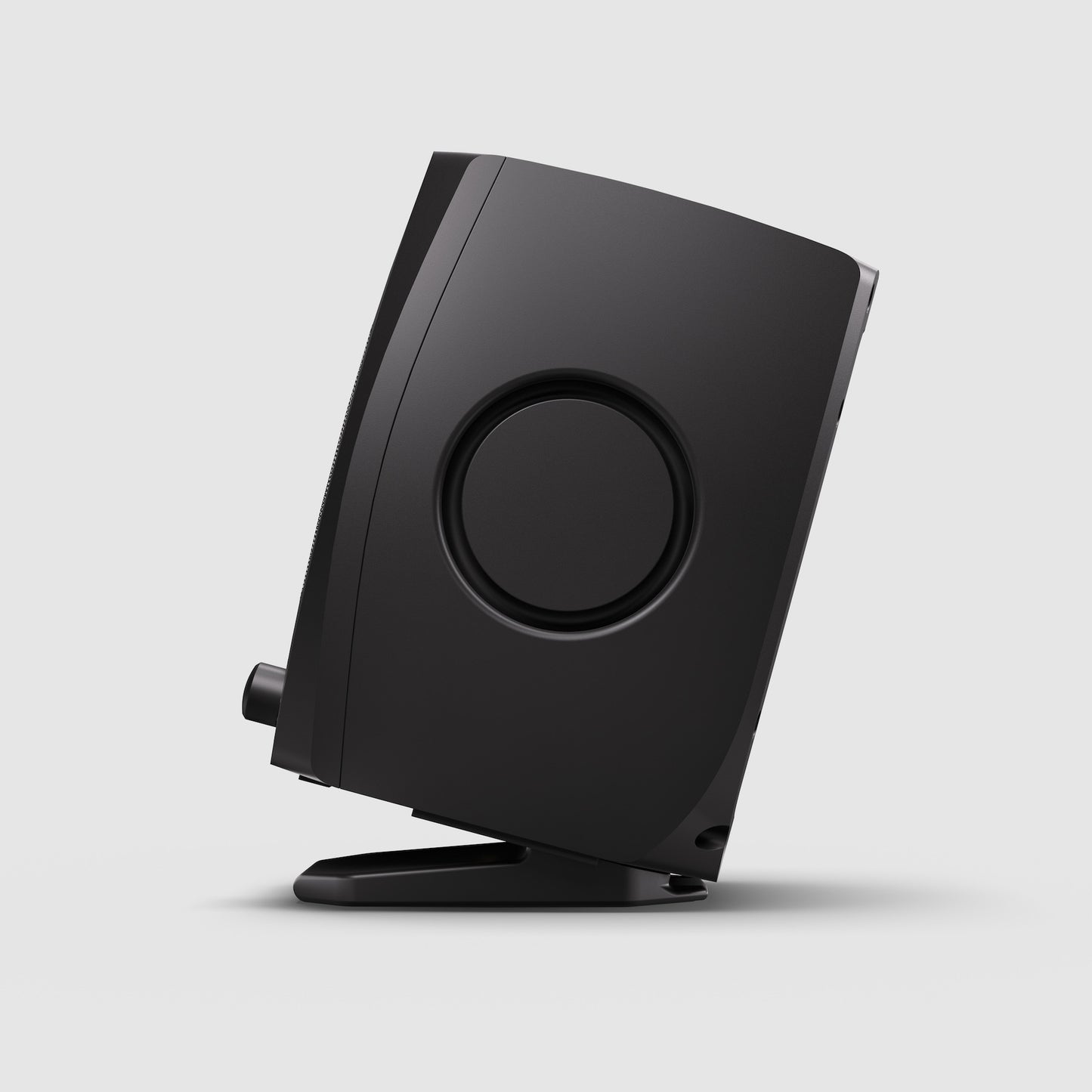

Double-sided passive radiators
Frequency response: 45 Hz – 23.2 kHz (-6dB)
Max SPL/speaker @ 1 m (peak): 97 dB
Tailored for songwriters, producers and music enthusiasts, the D3V speakers connect seamlessly to computers and mobile devices via USB-C. Despite their compact size, they deliver exceptional sound quality and versatile control options.

Mounting options:

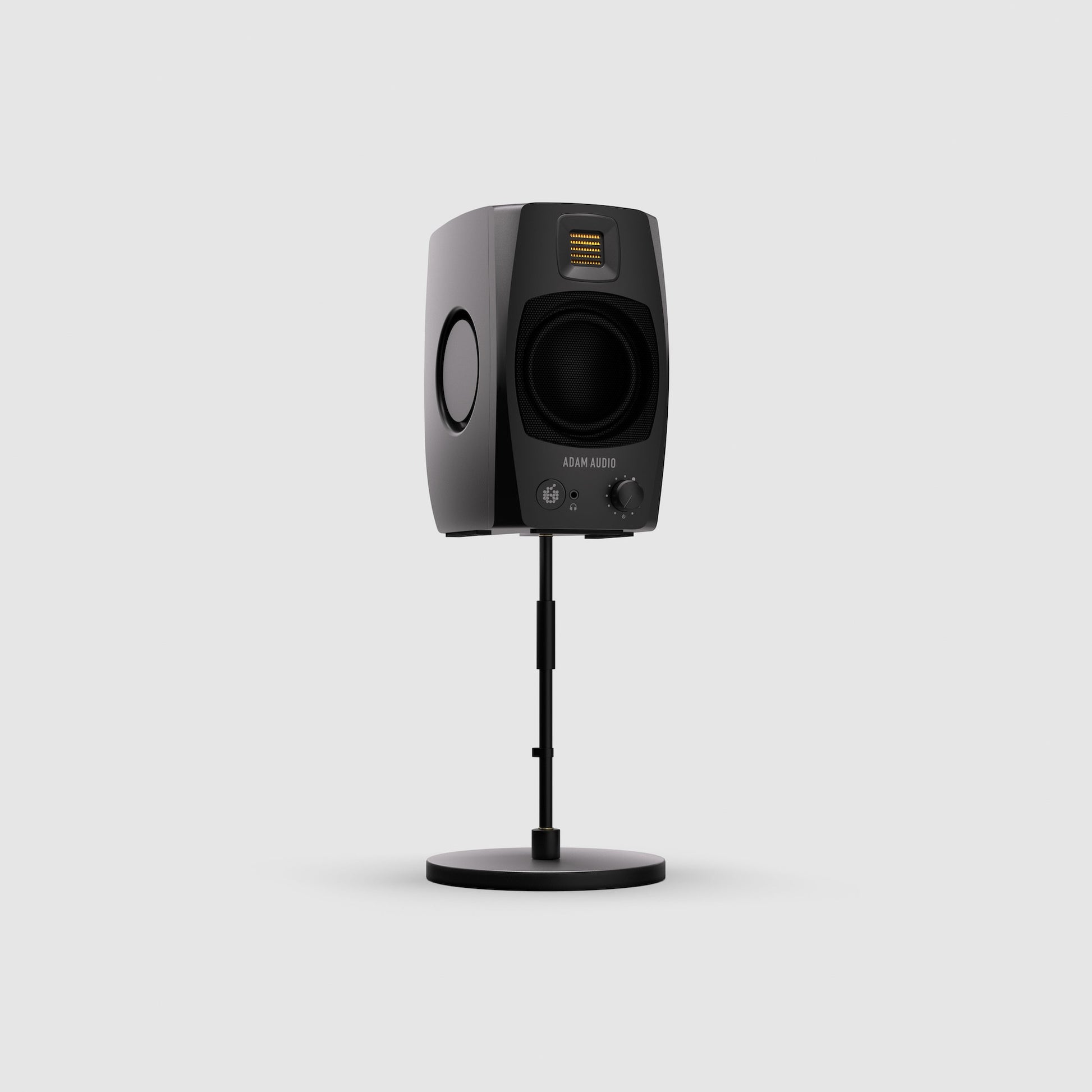

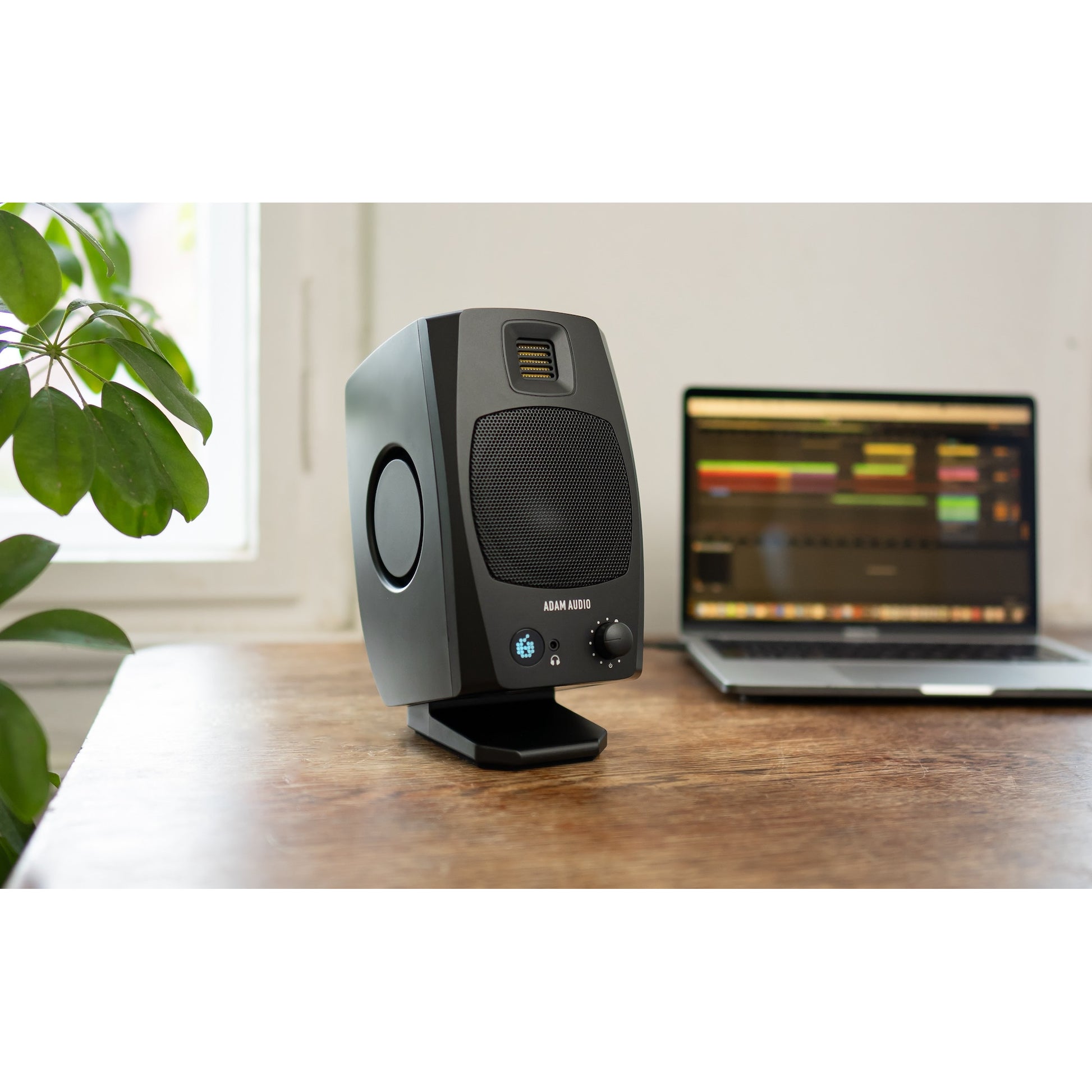

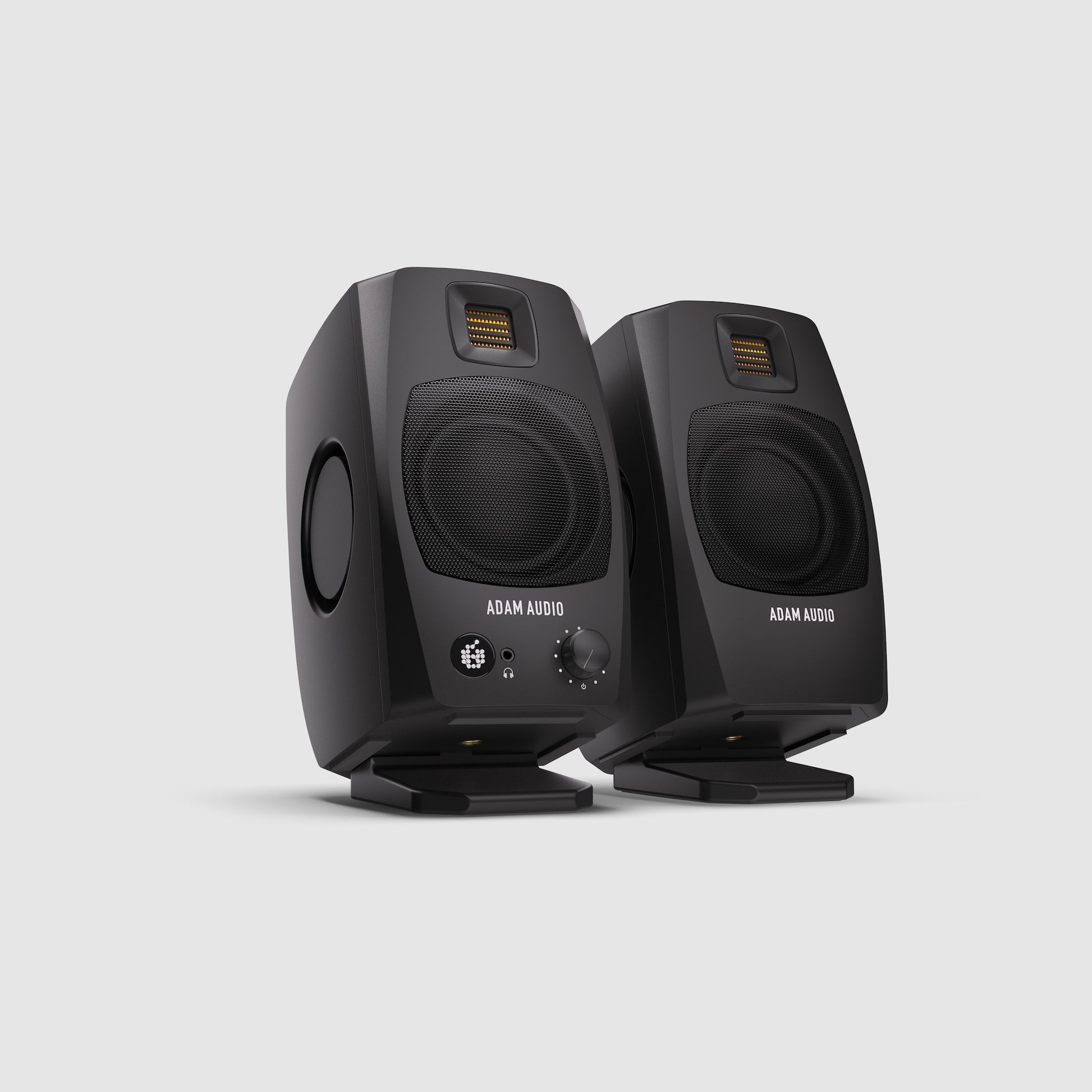

Flat on desk or speaker stand (angled 15 degrees upwards on desk using included stand), threaded insert (3/8″) on bottom of cabinet for stand

Package contents:

D3V primary speaker, D3V secondary speaker, USB-C cable with USB-A adapter, power cable, power adapter, Quick Start Guide

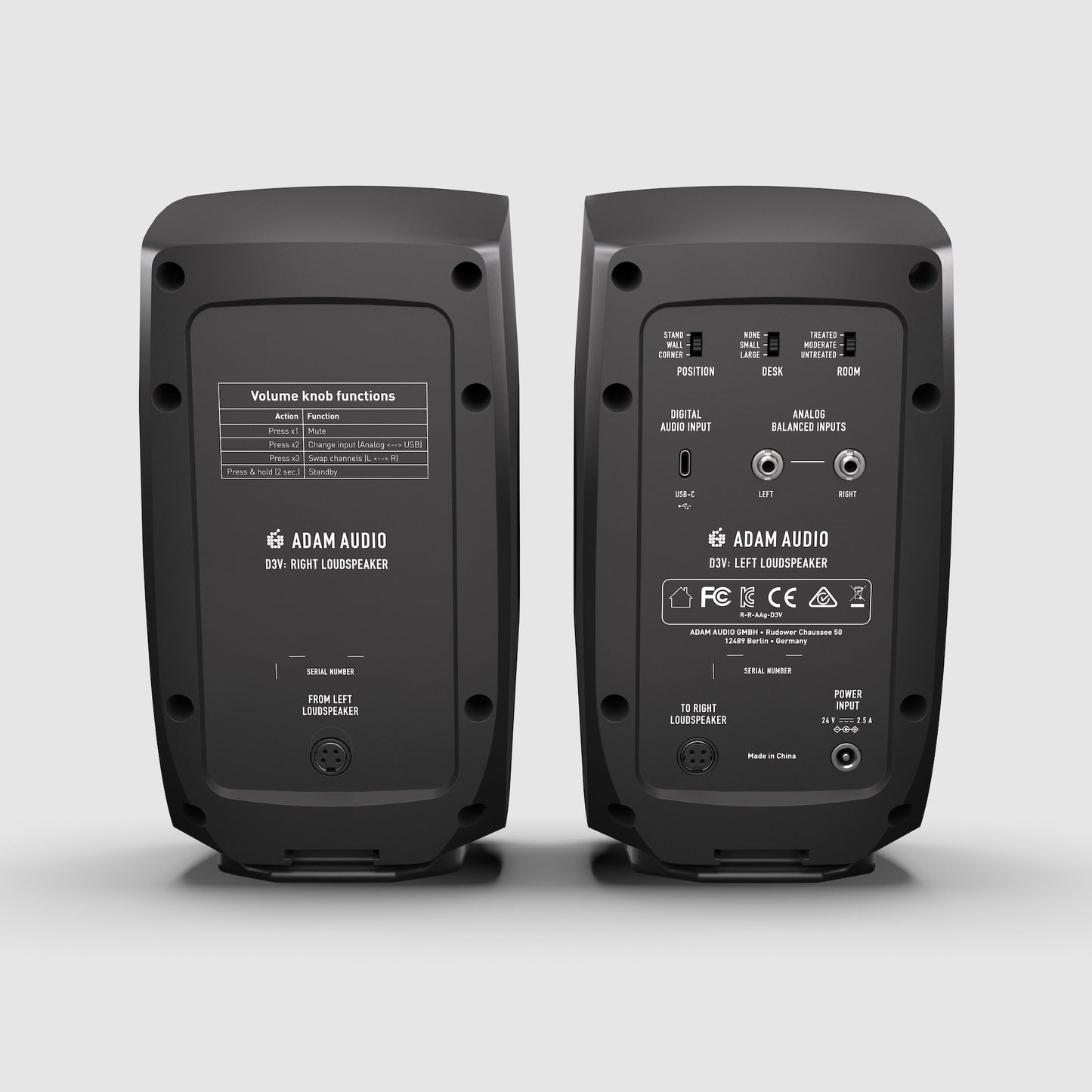

Connections :

Analog: TRS
Input impedance: 47 kOhm
Digital: USB Type-C
Headphones: 3.5mm TRS
Headphone impedance: 32 Ohm
Amplifiers/Drivers:

Passive radiator: 2 x 3.5″

Woofer: 3.5”

Amplifier type: PWM
Peak (10% THD, limiter disabled): 2 x 80 W
RMS (1% THD, limiter disabled): 2 x 70 W
Tweeter: 1.9” D-ART

Amplifier type: PWM
Peak (10% THD, limiter disabled): 2 x 40 W
RMS (1% THD, limiter disabled): 2 x 30 W
Treble spread: 120° horizontal, 120° vertical
Signal processing:

AD converter: 24-bit (via TRS inputs)
USB bit depth: 16-bit (via USB-C input)
Internal sample rate: 48 kHz
Frequency response @ -3 dB: 48 – 22.6 kHz
Frequency response @ -6 dB: 45 – 23.2 kHz
Crossover frequencies: 4.0 kHz
