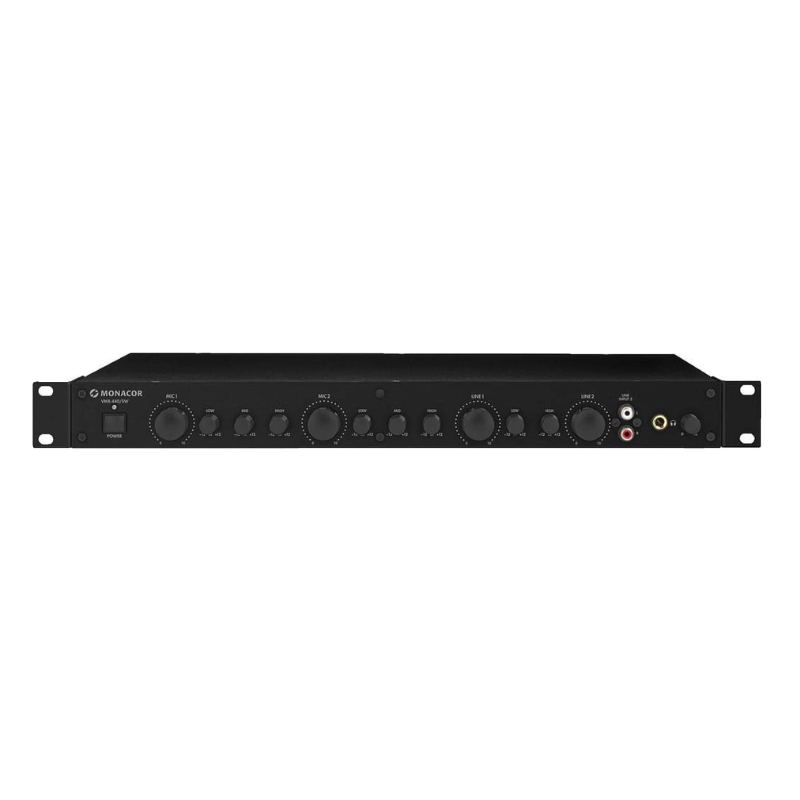

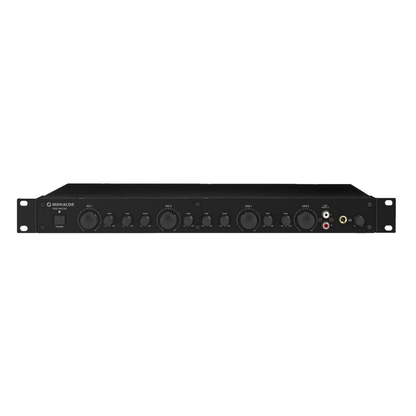

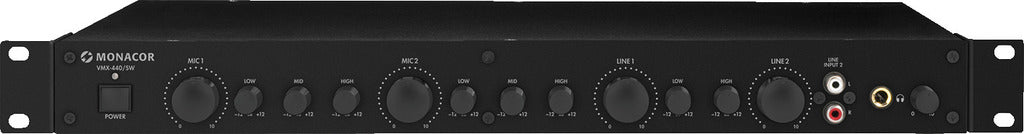

DEMO: MONACOR VMX-440/SW Mixer

DEMO: MONACOR VMX-440/SW Mixer

Stock status ✅ in stock in store - ready for pickup / shipping

995,00 DKK
1.200,00 DKK 995,00 DKK
Sale Sold out
Shipping calculated at checkout.

Demo model: absolutely minimal signs of wear.

4-channel microphone line mixer
User-friendly and clear. Two stereo and two microphone inputs. All inputs have tone control. Master output levels can be pre-adjusted using recessed potentiometers for overload protection. A remote switch (optional) can mute the stereo master outputs.

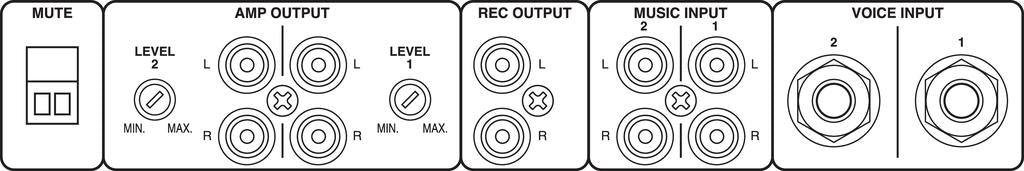

  • 2 stereo line inputs
  • 2 balanced microphone inputs
  • Parallel stereo line input on front panel
  • 3-way equalizer for each microphone input
  • Shared 2-way tone control for the two line inputs
  • Muting via contact - optional
  • 2 adjustable stereo master outputs
  • Master output level can be pre-adjusted using potentiometer
  • Adjustable headphone output
  • Stereo recording output
  • 482 mm (19") rack installation, 1 U, mounting brackets included

No. of channels 4
No. of inputs 5
Mic input 1 mV/600 Ω, 2 x 6.3 mm jack, bal.
Line input 100 mV/10 kΩ, 3 x RCA L/R
CD input -
Phono input -
Tape (play) -
Aux input -
Insert input -
Effect return -
Master output 1-3 V/100 Ω, 2 x RCA L/R
Record output 1 V/100 Ω, 1 x RCA L/R
Monitor output -
Booth output -
Aux output -
Insert output -
Effect send -
Control room -
Tape (record) -
Headphones ≥ 32 Ω, 2 x 15 mW, 1 x 6.3 mm jack
Gooseneck lamp -
USB -
Frequency range 20-20,000Hz
THD 0.05%
S/N ratio > 60dB
Crosstalk -
Equalizer bass ± 12 dB/30 Hz
Midrange equalizer ± 12 dB/1 kHz
(voice only)
Equalizer treble ± 12 dB/12 kHz
equalizer -
Talkover -
Phantom power -
Crossfader -
Media player -
Amplifier -
Power supply ∼ 230 V/50 Hz/10 VA
Mains voltage ∼ 230 V
Mains frequency 50Hz
Power consumption, operation 10 VA
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admissible ambient temp. 0-40°C
Width 482mm
Height 45mm
Depth 180mm
Rack spaces, RS 1
Weight 2.25 kg
