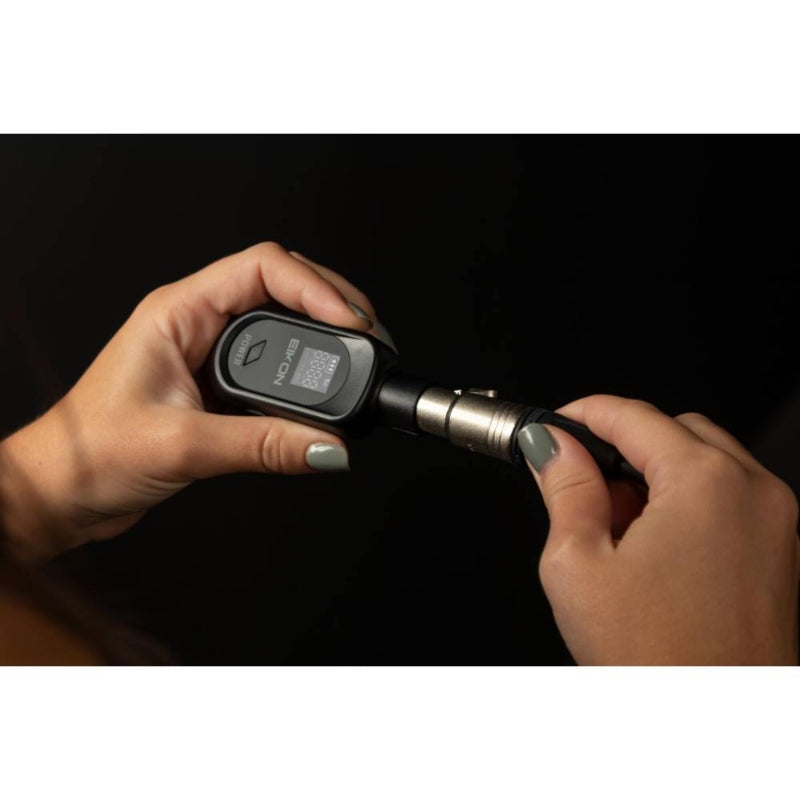

PROEL ULXR Wireless XLR system

Features:

• Sensitivity selection for MIC/LINE input
• UHF Quartz-locked DQPSK modulation mode
• Range up to 30 meters
• Built-in 3.7V/800mA lithium battery
• 5V USB-C charging cable included
• Up to 5 hours of autonomy

Specifications:

• Type:
• Producer:
• Model: UXLR

UXLR – UHF PLL transmitter

• RF channels: 16 or 30 frequency presets depending on the band
• RF frequency band: UHF: 863-865 MHz or 568.500 – 580.100 MHz
• RF frequency stability: ±0.002%
• RF oscillation mode: PLL synthesized
• RF modulation type: DQPSK
• RF output power: 10mW
• Subharmonic: < 40 dB
• Operating current: 130mA
• Operating time: 3 to 5 hours
• Operating power supply: 3.7 V / 800 mA - built-in lithium battery
• Charging mode: USB charging 5V - type C connector
• Charging time: 3 hours
• Weight: 0.10 kg

UXLR – UHF PLL Receiver

• RF channels: 16 or 30 frequency presets depending on the band
• RF frequency band: UHF: 863-865 MHz or 568.500 – 580.100 MHz
• RF frequency stability: ±0.005%
• RF oscillation mode: PLL synthesized
• RF modulation type: DQPSK
• RF reception sensitivity: < -98 dBm
• RF reception range: Up to 30 meters
• Audio dynamic range: 106 dBm
• THD distortion: < 0.5%
• S/N ratio: > 102 dBA
• Operating current: 85 mA
• Operating time: 3 to 5 hours
• Operating power supply: 3.7 V / 800 mA - built-in lithium battery
• Charging mode: USB charging 5V - type C connector
• Charging time: 4 hours
• Weight: 0.10 kg

(note: the text is translated and may contain errors)
